PRODUCTS DESCRIPTION
11 179 xxx1: Spring Loaded T-Bolt Clamps Band 0.6*19mm, INOX 304
11 179 xxx2: Spring Loaded T-Bolt Clamps Band 0.8*19mm, INOX 304
11 179 xxx3: Spring Loaded T-Bolt Clamps Band 1.0*19mm, INOX 304
| Art.No. | Size | Tightening | Band width | Band Thickness |
| Easy-Fix | (mm) | Range | (mm) | (mm) |
| 11 178 034x | 34 | 28-34 | 19 | 0.6/0.8/1.0 |
| 11 178 037x | 37 | 19 | 0.6/0.8/1.0 | |
| 11 178 040x | 40 | 19 | 0.6/0.8/1.0 | |
| 11 178 042x | 42 | 36-42 | 19 | 0.6/0.8/1.0 |
| 11 178 043x | 43 | 19 | 0.6/0.8/1.0 | |
| 11 178 046x | 46 | 40-46 | 19 | 0.6/0.8/1.0 |
| 11 178 050x | 50 | 44-50 | 19 | 0.6/0.8/1.0 |
| 11 178 051x | 51 | 19 | 0.6/0.8/1.0 | |
| 11 178 056x | 56 | 19 | 0.6/0.8/1.0 | |
| 11 178 059x | 59 | 56-59 | 19 | 0.6/0.8/1.0 |
| 11 178 062x | 62 | 54-62 | 19 | 0.6/0.8/1.0 |
| 11 178 065x | 65 | 58-65 | 19 | 0.6/0.8/1.0 |
| 11 178 068x | 68 | 19 | 0.6/0.8/1.0 | |
| 11 178 071x | 71 | 19 | 0.6/0.8/1.0 | |
| 11 178 072x | 72 | 64-72 | 19 | 0.6/0.8/1.0 |
| 11 178 073x | 73 | 19 | 0.6/0.8/1.0 | |
| 11 178 075x | 75 | 19 | 0.6/0.8/1.0 | |
| 11 178 076x | 76 | 19 | 0.6/0.8/1.0 | |
| 11 178 077x | 77 | 68-77 | 19 | 0.6/0.8/1.0 |
| 11 178 078x | 78 | 70-78 | 19 | 0.6/0.8/1.0 |
| 11 178 080x | 80 | 19 | 0.6/0.8/1.0 | |
| 11 178 081x | 81 | 19 | 0.6/0.8/1.0 | |
| 11 178 083x | 83 | 74-83 | 19 | 0.6/0.8/1.0 |
| 11 178 084x | 84 | 76-84 | 19 | 0.6/0.8/1.0 |
| 11 178 088x | 88 | 19 | 0.6/0.8/1.0 | |
| 11 178 089x | 89 | 80-89 | 19 | 0.6/0.8/1.0 |
| 11 178 091x | 91 | 83-91 | 19 | 0.6/0.8/1.0 |
| 11 178 092x | 92 | 83-92 | 19 | 0.6/0.8/1.0 |
| 11 178 094x | 94 | 19 | 0.6/0.8/1.0 | |
| 11 178 095x | 95 | 86-95 | 19 | 0.6/0.8/1.0 |
| 11 178 097x | 97 | 89-97 | 19 | 0.6/0.8/1.0 |
| 11 178 100x | 100 | 19 | 0.6/0.8/1.0 | |
| 11 178 101x | 101 | 92-101 | 19 | 0.6/0.8/1.0 |
| 11 178 103x | 103 | 95-103 | 19 | 0.6/0.8/1.0 |
| 11 178 107x | 107 | 19 | 0.6/0.8/1.0 | |
| 11 178 110x | 110 | 102-110 | 19 | 0.6/0.8/1.0 |
| 11 178 113x | 113 | 105-113 | 19 | 0.6/0.8/1.0 |
| 11 178 114x | 114 | 19 | 0.6/0.8/1.0 | |
| 11 178 116x | 116 | 108-116 | 19 | 0.6/0.8/1.0 |
| 11 178 120x | 120 | 114-120 | 19 | 0.6/0.8/1.0 |
| 11 178 122x | 122 | 114-122 | 19 | 0.6/0.8/1.0 |
| 11 178 129x | 129 | 121-129 | 19 | 0.6/0.8/1.0 |
Like 11 179 xxx the following robust clamps have the same data, but made of INOX201/430:
11 245 xxx1: Spring Loaded T-bolt Clamps INOX 210/430 Band 0.6 mm, Carbon Steel White ZP Bolt , Nut & Spring
11 245 xxx2: Spring Loaded T-bolt Clamps INOX 210/430 Band 0.8 mm, Carbon Steel White ZP Bolt , Nut & Spring
11 245 xxx3: Spring Loaded T-bolt Clamps INOX 210/430 Band 1.0 mm, Carbon Steel White ZP Bolt , Nut & Spring

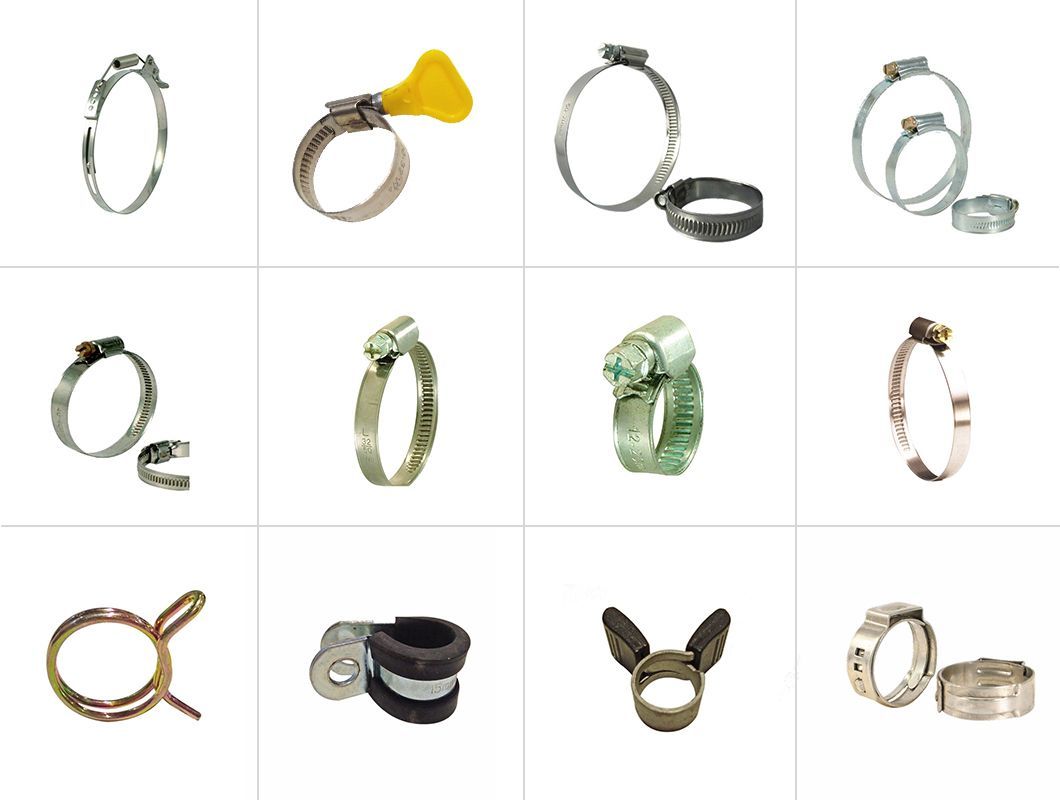

MORE PRODUCTS
